1020×610mm Mobile Lift Tables Mobile Scissor Lift Trolley With Balls 24VDC
Product Details:
| Place of Origin: | Jiangsu, China |
| Brand Name: | Buytool |
| Certification: | CE,SGS,ISO9001 |
| Model Number: | ESF50D6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $1700~2500 usd/unit |
| Packaging Details: | 1unit/pallet |
| Delivery Time: | 20 working days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000 units per month |
|
Detail Information |
|||
| Name: | Mobile Lift Tables | Material: | Q345B |
|---|---|---|---|
| Lifting Height: | 1110mm | Min. Height: | 610mm |
| Table Dimensions: | 1020x610mm | Max. Height: | 1720mm |
| Motor Power: | 1.1kw 24V | Capacity: | 500kg |
| Color: | Yellow, Red, Blue, White, Green, Black, Etc. | Application: | Warehouse, Workshop |
| HS Code: | 8428909090 | Warranty: | One Year |
| Highlight: | 1020×610mm mobile scissor lift trolley,mobile scissor lift trolley with Balls 24VDC,24v table lift Buytool |
||
Product Description

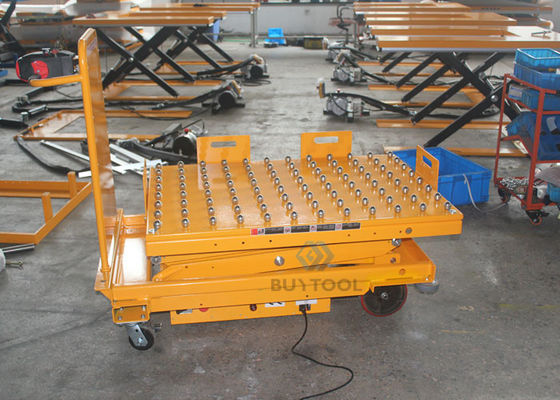

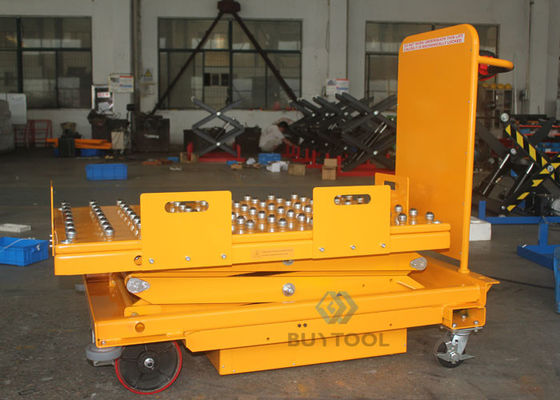

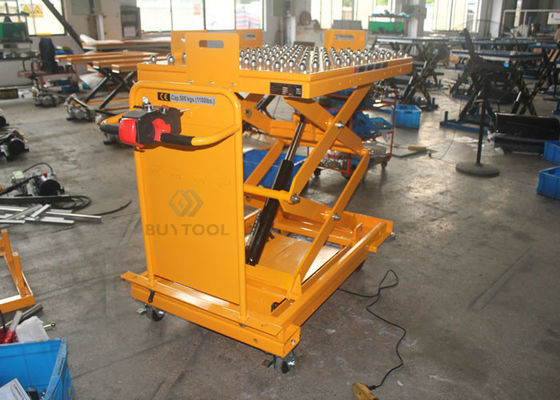

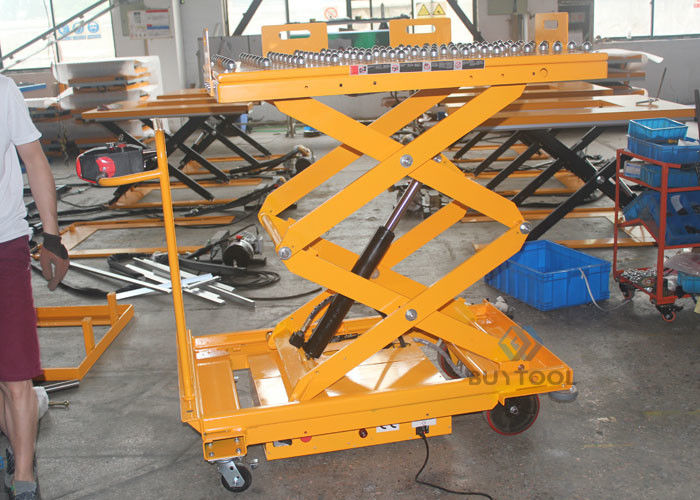

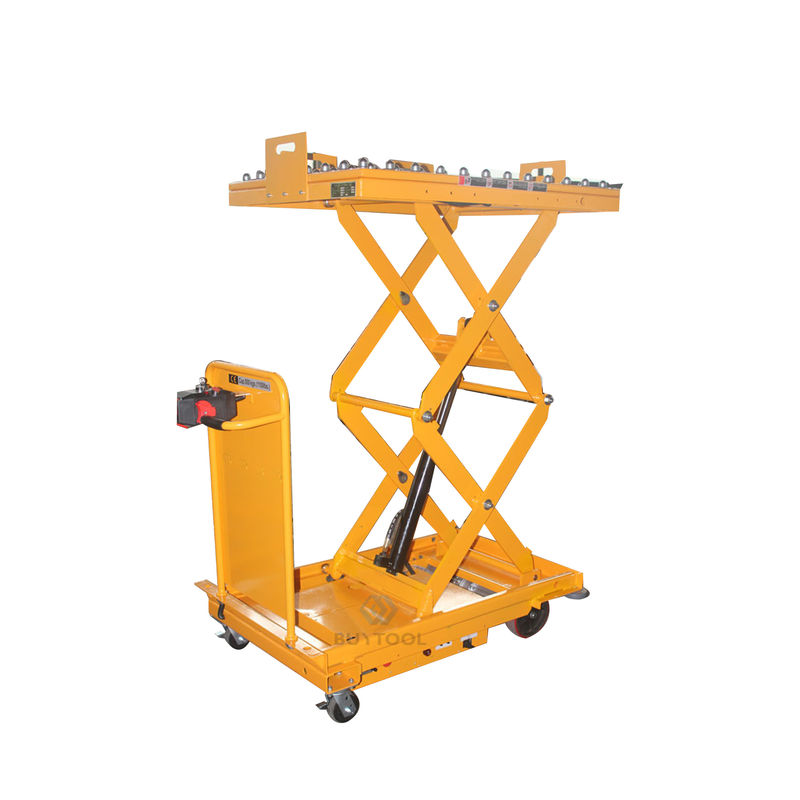

Full-Electric Mobile Lift Tables with Balls 24V DC Maintenance-free Battery
Features:
- With transfer balls for easy goods movement.
- Meet EN1570 norm and ANSI/ASME safety standards.
- Curtis controller & HALL accelerator.
- Self-propelled and electric lifting.
Descritpion:
Self-propelled Electric Lift Table features a proven Curtis controller and Hall accelerator to provide effortless lifting, lowering and movement of heavy loads. A push of a button will raise and lower the platform, and a twist style throttle with reverse powers the front drive wheels.
| Model | ESF50 | ESF50D | |
| Capacity | Kg) | 500 | 500 |
| Platform Size (L*W) | (mm) | 1020×610 | 1020×610 |
| Min./Max. Height | (mm) | 460/1000 | 460/1720 |
| Handle Height | (mm) | 1030 | 1030 |
| Overall Size (L*W) | (mm) | 1200×670 | 1200×670 |
| Lift Time | (s) | 15/15 | 15/15 |
| Net Weight | (kg) | 214 | 220 |
FAQ:
Q: What about the quality of the products?
A: Our lift tables are CE approved, and we have five inspection steps before shipment:
1. Inspect the raw material in accordance with ISO9001;
2. Strict inspection in the whole production process;
3. Load limit test when assembling finished;
4. 100% strict inspection of lift tables before shipment;
5. If needed, inspection by buyer.
Q: Do you accept customized design? Do you offer OEM & ODM service?
A: Yes,of course! We have over 10 years' experience in customized design product,expecially lift tables.
Q: What information should I provide for a customized order?
A: The more information you provide, the accurate solution we can prepare for you.Such as:
1.control by manual or electric
2.stationary or mobile lift tables
3.power source/voltage demand
4.load capacity
5.lifting heigh(min.height and max height)
6.table size
Q: What is your MOQ?
A: One unit.The more the better.The price is negotiable for large quantity.
Q: How long is the quality guarantee?
A: All of our products carry one-year warranty.
Q: What's the leadtime?
A: Normally 30 days.
If you order more than 5 itmes mixed in one container, it will be 45 days.
If you order one item in one container, it will be 20 days.
