Hydraulic Bike Mini Lift Table Electric Scissor Platform With Separated Pump Station
Product Details:
| Place of Origin: | China |
| Brand Name: | Buytool |
| Certification: | CE,SGS,ISO9001 |
| Model Number: | HZ500/HZ1001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 UNIT |
|---|---|
| Price: | USD700-1000/UNIT |
| Packaging Details: | 7units/pallet |
| Delivery Time: | 10 working days |
| Payment Terms: | T/T, Western Union, L/C, |
| Supply Ability: | 1000 UNITS/PER MONTH |
|
Detail Information |
|||
| Name: | Electric Lift Tables | Model: | HZ500 |
|---|---|---|---|
| Table Size: | 910x610mm | Min. Height: | 162mm |
| Max. Height: | 950mm | Capacity: | 500kg |
| Color: | Yellow, Red, Blue, White, Green, Black, Etc. | Application: | Warehouse, Material Handling |
| Packing Dimensions: | 1000x660x360mm | HS Code: | 8428909090 |
| Highlight: | mini bike lift table,small lift table electric,mini hydraulic lift table |
||
Product Description

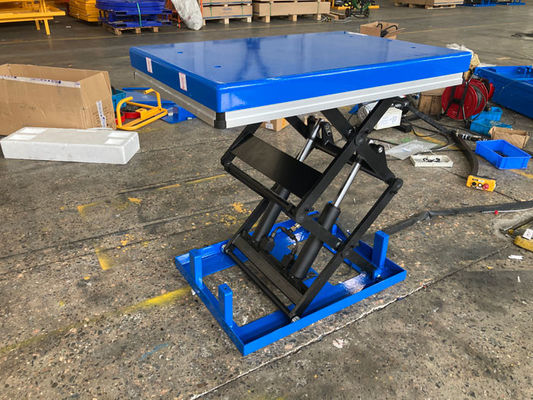

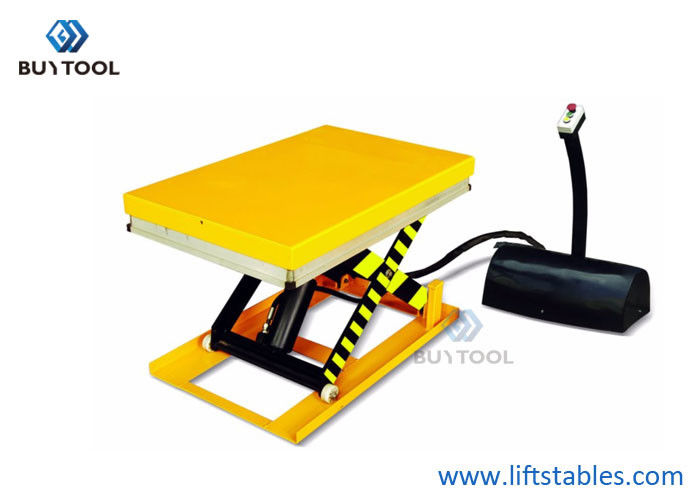

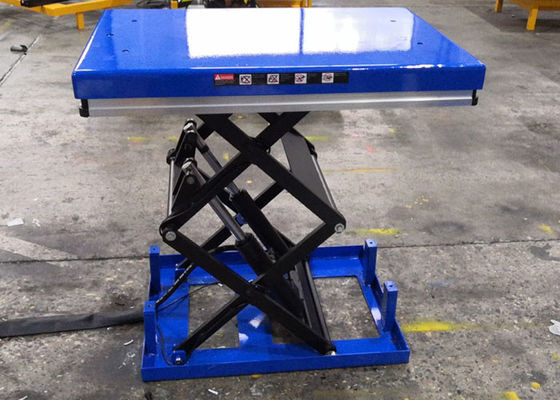

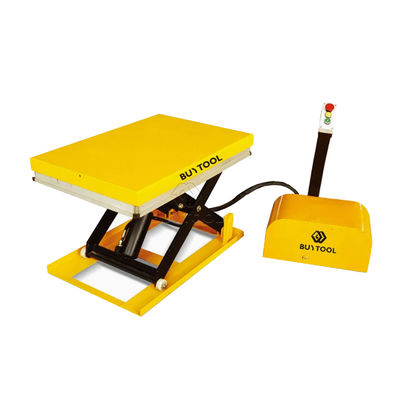

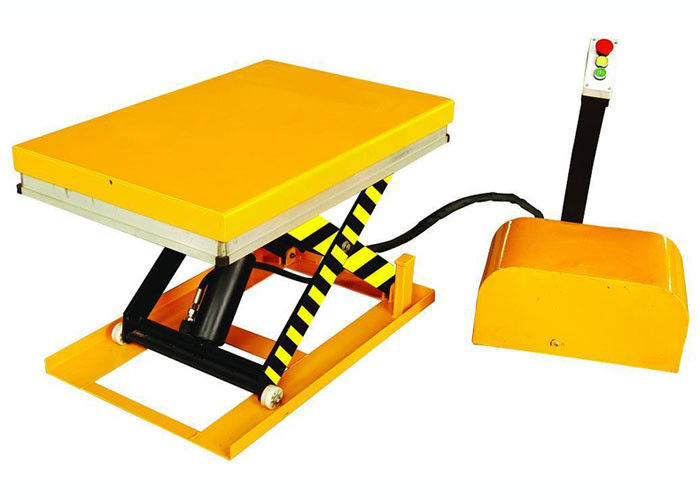

Electric Hydraulic Mini Size Lift Scissor Table with Separated Pump Station
Features:
- Small platform for special size material.
- Separated pump station, easy to manitance.
- Meet EN1570 norm and ANSI/ASME safety standard.
- Imported South Korea Pump station, very stable.
- The distance of power unit is optional.
| Model | HZ501 | HZ1001 | |
| Capacity | (kg) | 500 | 1000 |
| Lowered Height | (mm) | 162 | 180 |
| Raised Height | (mm) | 950 | 770 |
| Platform Size | LxW (mm) | 910x610 | 610x916 |
| Base Frame Size | (mm) | 585x890 | 585x896 |
| Lift Time | (sec) | 15~20 | 15~20 |
| Power Pack | 380V/50HZ, AC 1.1kw | ||
| Net Weight | (kg) | 110 | 115 |
FAQ:
Q: What about the quality of the products?
A: Our lift tables are CE approved, and we have five inspection steps before shipment:
1. Inspect the raw material in accordance with ISO9001;
2. Strict inspection in the whole production process;
3. Load limit test when assembling finished;
4. 100% strict inspection of lift tables before shipment;
5. If needed, inspection by buyer.
Q: Do you accept customized design? Do you offer OEM & ODM service?
A: Yes,of course! We have over 10 years' experience in customized design product,expecially lift tables.
Q: What information should I provide for a customized order?
A: The more information you provide, the accurate solution we can prepare for you.Such as:
1.control by manual or electric
2.stationary or mobile lift tables
3.power source/voltage demand
4.load capacity
5.lifting heigh(min.height and max height)
6.table size
Q: What is your MOQ?
A: One unit.The more the better.The price is negotiable for large quantity.
Q: How long is the quality guarantee?
A: All of our products carry one-year warranty.
Q: What's the leadtime?
A: Normally 30 days.
If you order more than 5 itmes mixed in one container, it will be 45 days.
If you order one item in one container, it will be 20 days.
