Hydraulic Scissor Auto Pallet Lift Table With Ramp 1600x1140mm
Product Details:
| Place of Origin: | China |
| Brand Name: | Buytool |
| Certification: | UL, ISO9001, CE, SGS |
| Model Number: | HY1002 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | USD1050-1300/SET |
| Packaging Details: | 7units/pallet |
| Delivery Time: | 15 Working Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 1000 SETS/PER MONTH |
|
Detail Information |
|||
| Name: | Low Profile Lift Tables | Model: | HY1002 |
|---|---|---|---|
| Platform L X W (mm): | 1600x1140mm | Closed Height: | 85mm |
| Raised Height: | 860mm | Material: | Q345B |
| Net Weight: | 250kg | Packing Size: | 16500x1200x400mm |
| Highlight: | scissor lift table with ramp 1600x1140mm,hydraulic lift table with ramp 1600x1140mm,pallet lift table with ramp 1600x1140mm |
||
Product Description

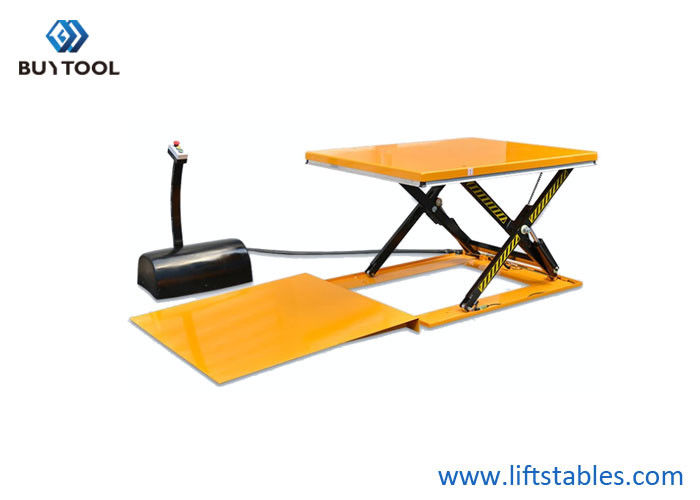

Hydraulic Scissor Low Profile Lifts Tables with Pallet Loading Ramp
Main Features:
- Shearing in lifting table for evenly distributed loads
- Smooth steel sheet platform or alternatively U-shape
- Use on industrial ground, without pitch installation
- External hydraulic unit with operation
Description:
The ramp enables pallets to be placed directly onto the platform using a manual or electric pallet truck. The pallet can then be raised to a working height, helping to eliminate back strain and thus contributing to a safer working environment.
Parameters:
| MODEL | TYPE | CAPACITY (KG) | PLATFORM L X W (MM) | CLOSED HEIGHT (MM) | RAISED HEIGHT (MM) | WEIGHT (KG) |
| HY1002 | Low Profile Lift Table | 1000 | 1600 X 1140 | 85 | 860 | 150 |
| Parts | Table with Ramp | 1000 | 1600 X 1140 | 85 | 860 | 100 |

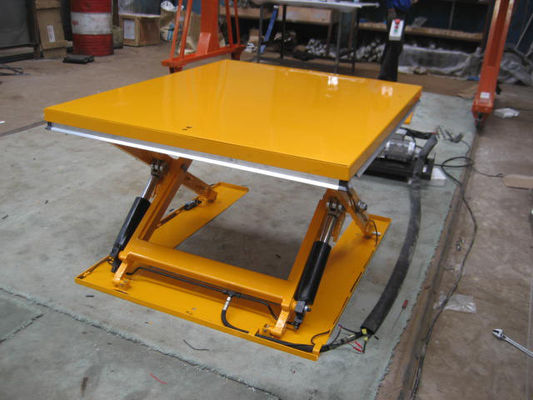

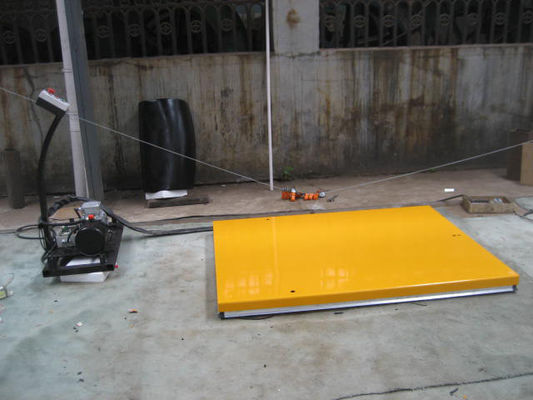

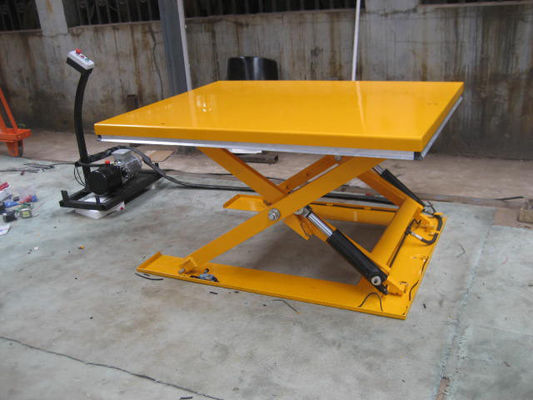

Images:
FAQ:
Q: What about the quality of the products?
A: Our lift tables are CE approved, and we have five inspection steps before shipment:
1. Inspect the raw material in accordance with ISO9001;
2. Strict inspection in the whole production process;
3. Load limit test when assembling finished;
4. 100% strict inspection of lift tables before shipment;
5. If needed, inspection by buyer.
Q: Do you accept customized design? Do you offer OEM & ODM service?
A: Yes,of course! We have over 10 years' experience in customized design product,expecially lift tables.
Q: What information should I provide for a customized order?
A: The more information you provide, the accurate solution we can prepare for you.Such as:
1.control by manual or electric
2.stationary or mobile lift tables
3.power source/voltage demand
4.load capacity
5.lifting heigh(min.height and max height)
6.table size
Q: What is your MOQ?
A: One unit.The more the better.The price is negotiable for large quantity.
Q: How long is the quality guarantee?
A: All of our products carry one-year warranty.
Q: What's the leadtime?
A: Normally 30 days.
If you order more than 5 itmes mixed in one container, it will be 45 days.
If you order one item in one container, it will be 20 days.
