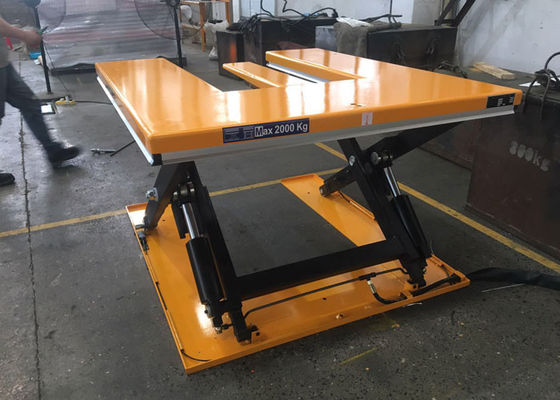

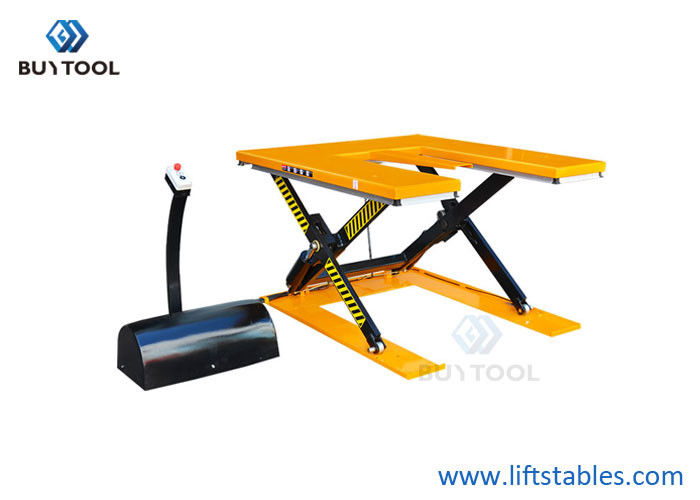

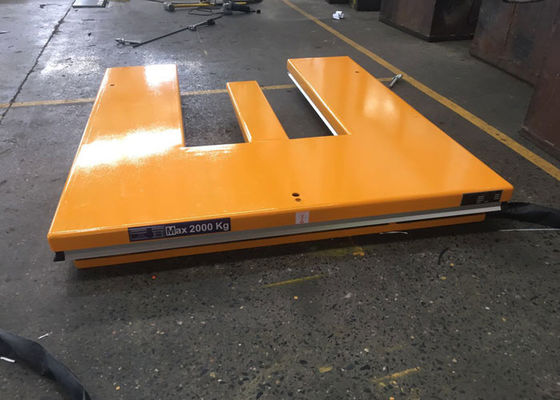

Pallet Hydraulic Lift Table Low Profile Lifting Device 2000kg
Product Details:
| Place of Origin: | China |
| Brand Name: | Buytool |
| Certification: | CE,SGS,ISO9001 |
| Model Number: | HE2000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 UNIT |
|---|---|
| Price: | USD1390-1500/UNIT |
| Packaging Details: | 7units/pallet |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, Western Union, L/C, |
| Supply Ability: | 1000 UNITS/PER MONTH |
|
Detail Information |
|||
| Name: | Low Profile Lifts Tables | Max. Height: | 820mm |
|---|---|---|---|
| Min. Height: | 100mm | Table Size: | 1500x1300mm |
| Material: | Q345B | Capacity: | 2000kg |
| Color: | Yellow | Application: | Warehouse, Material Handling |
| Packing Dimensions: | 1550x1350x400mm | HS Code: | 8428909090 |
| Highlight: | pallet hydraulic lift table 820mm height,low profile lifting device 2000kg 820mm,pallet scissor lift table |
||
Product Description
Low Profile Lift Tables for Pallet Handling 2000kg Capacity
Description:
Load and unload skids with a pallet truck without the need for a pit when using the optional approach ramp.
Safety Features:
- Upper platform fitted with safety perimeter to prevent descent on contact with obstructions.
- 24V control box with UP and DOWN buttons and emergency stop.
- External power pack equipped with a relief valve against overloading and a compensated flow valve for controlling lowering speed.
- Hose burst safety valve to stop the lift table lowering in case of hose breakage.
- Removable lifting eyes to facilitate handling and installation of the lift table.
| Model | HE500 | HE1000 | HE1500 | HE2000 |
| Capacity (kg) | 500 | 1000 | 1500 | 2000 |
| Max. height H(mm) | 885 | 885 | 885 | 820 |
| Collapsed height h(mm) | 85 | 85 | 85 | 100 |
| Platform L×W(mm) | 1400×1200 | 1400×1200 | 1500×1300 | 1500x1300 |
| Lifting Time (second) | 25~35 | 25~35 | 30~40 | 30~40 |
| Power Pack (KW) | 380V/50Hz, AC0.75KW | 380V/50Hz, AC0.75KW | 380V/50Hz, AC1.5KW | 380V/50Hz, AC2.2KW |
| Net Weight (kg) | 207 | 280 | 380 | 500 |
FAQ:
Q: What about the quality of the products?
A: Our products are CE approved, and we have five inspection steps before shipment:
1. Inspect the raw material in accordance with ISO9001;
2. Strict inspection in the whole production process;
3. Load limit test when assembling finished;
4. 100% strict inspection of products before shipment;
5. If needed, inspection by buyer.
Q: How long is the quality guarantee?
A: All of our products carry one-year warranty.
Q: What's the leadtime?
A: Normally 30 days.
If you order more than 5 itmes mixed in one container, it will be 45 days.
If you order one item in one container, it will be 20 days.
