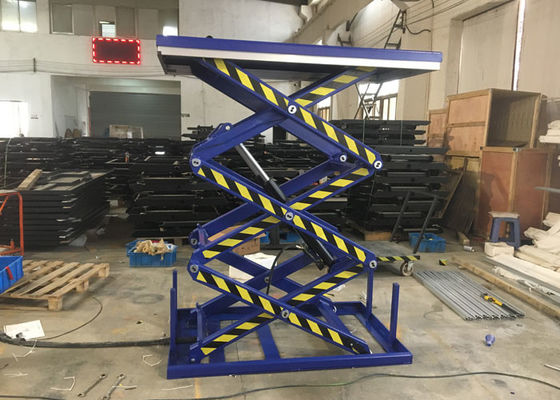

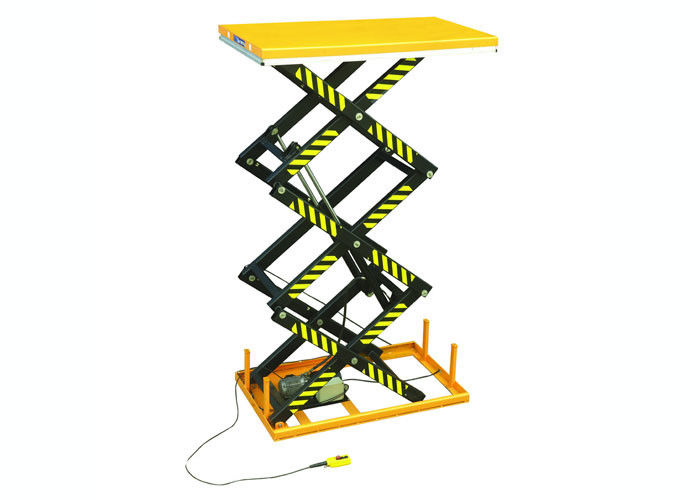

Triple Scissors Heavy Duty Hydraulic Lift Table 2 Ton 500 Lbs Height 3000mm
Product Details:
| Place of Origin: | China |
| Brand Name: | Buytool |
| Certification: | CE,SGS,ISO9001 |
| Model Number: | HT2000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 UNIT |
|---|---|
| Price: | USD1700-1850/UNIT |
| Packaging Details: | 7units/pallet |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, Western Union, L/C, |
| Supply Ability: | 1000 UNITS/PER MONTH |
|
Detail Information |
|||
| Name: | Electric Lifts Tables | Max. Height: | 3000mm |
|---|---|---|---|
| Min. Height: | 560mm | Table Size: | 1700x1000mm |
| Material: | Q345B | Capacity: | 2000kg |
| Color: | Yellow, Red, Blue, White, Green, Black, Etc. | Application: | Warehouse, Material Handling |
| Packing Dimensions: | 1750x1050x770mm | HS Code: | 8428909090 |
| Highlight: | heavy duty hydraulic lift table Height 3000mm,hydraulic table lift 500 lbs Height 3000mm,Triple Scissors heavy duty hydraulic lift table Height 3000mm |
||
Product Description
Electric Hydraulic Lift Tables Triple Scissors Height 3000mm
Safety Features:

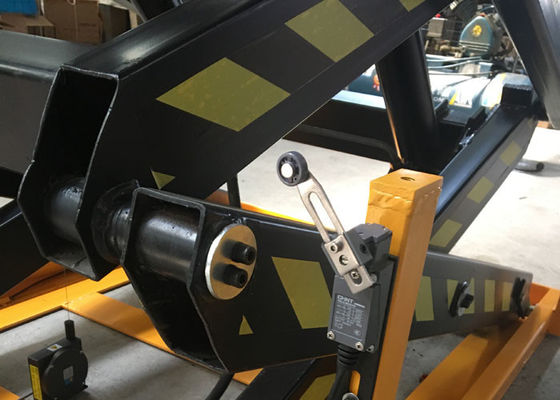

- Upper platform lifted with aluminum safety bar preventing descent on contact with obstructions.
- Internal power pack equipped with relief valve against overloading and compensated flow valve for controlled lowering speed.
- Heavy duty cylinders with drainage system and check valve to stop the lift table lowering in case of hose burst.
- Safety clearance between scissors to prevent trapping during operation.
| Model | HT1000 | HT2000 | |
| Capacity | Kg | 1000 | 2000 |
| Lowered Height | mm | 470 | 560 |
| Raised Height | mm | 3000 | 3000 |
| Platform Size | mm | 1700x1000 | 1700x1000 |
| Base Frame Size | mm | 1600x1000 | 1606x1010 |
| Lift Time | (sec) | 60-70 100 for w/o loading |
70-80 120 for w/o loading |
| Power Pack | 380V/50HZ,AC2.2kw | ||
| Net Weight | kg | 450 | 750 |
FAQ:
Q: What about the quality of the products?
A: Our lift tables are CE approved, and we have five inspection steps before shipment:
1. Inspect the raw material in accordance with ISO9001;
2. Strict inspection in the whole production process;
3. Load limit test when assembling finished;
4. 100% strict inspection of lift tables before shipment;
5. If needed, inspection by buyer.
Q: Do you accept customized design? Do you offer OEM & ODM service?
A: Yes,of course! We have over 10 years' experience in customized design product,expecially lift tables.
Q: What information should I provide for a customized order?
A: The more information you provide, the accurate solution we can prepare for you.Such as:
1.control by manual or electric
2.stationary or mobile lift tables
3.power source/voltage demand
4.load capacity
5.lifting heigh(min.height and max height)
6.table size
Q: What is your MOQ?
A: One unit.The more the better.The price is negotiable for large quantity.
Q: How long is the quality guarantee?
A: All of our products carry one-year warranty.
Q: What's the leadtime?
A: Normally 30 days.
If you order more than 5 itmes mixed in one container, it will be 45 days.
If you order one item in one container, it will be 20 days.
